Switch to Linear ModeSwitch to Hybrid ModeSwitch to Threaded Mode
Printer Friendly View | Email this page | Register Now to enjoy user benefits! | Share on Share on Facebook
VRNews www.vr-zone.com


Join Date: Aug 2007
Location: In a datacentre
Posts: 221,482
Trade rep: 0 (0%)
9500GT x16 to x1 Mod VRNews Mar 9th, 09, 03:08 PM #1 (permalink)
ELSA Plans 9500GT PCIe x1 Card

ELSA has a neat little PCI Express x1 graphics card based on GeForce 9500 GT GPU clocked at 550MHz core, 1375MHz shader and 1400MHz memory. Previously, we saw several graphics card makers coming out with PCIe x1 solution and it proves pretty popular among some users who lack a x16 slot most often in a SFF or HTPC environment. So far, we have seen Galaxy coming out with 7300 GT, Sparkle with 8400 GS and PNY with Quadro NVS 420.


Read More:
ELSA Plans 9500GT PCIe x1 Card For SFF/HTPC

Advertisement:


Last edited by elladan; Mar 27th, 09 at 09:35 PM..
booest
booest's Avatar
bias bast@rd


Join Date: Feb 2004
Location: Tribal Isles
Posts: 94,550
Trade rep: 53 (100%)
booest Mar 10th, 09, 08:42 AM #2 (permalink)
if ati have PCI-e solution with HDMI...
i will be damn!

perfect upgrade for Intel FC
| Intel Core 2 Quad (45nm) Q3350 - cooled by Scythe Zipang | Asus P5Q3-Deluxe ExpressGate on-board | Gigabyte ATi HD4670 |
| 4x 2Gb DDR3 1600MHz Qimonda Aeneon | Vista OS on 2 x WD 640gb AAKS [RAID0] + JBODs | LSi Logic MegaRAID 8344ELP |
| LG 20X DVD writer - LightScribe (PATA) | Seasonic M12D- 750Watts | Soldam WindY Alcadia X1 - Black-1st gen | Dell 2707WFP |
| On-board Sound via via Custom dreamslacker or yantronic cables |AE AegoM changed satellites to Travagans 2" - Black |

vR-Zone 10th Anniversary Bicycle Promo

Win an iPad when you use PINCH - Newest iPhone Messaging App ...with a pinch

vR is 10 - Celebration Options discussion
nubie2 Registered User


Join Date: Feb 2008
Posts: 136
Trade rep: 0 (0%)
Comments from Article View... nubie2 Mar 10th, 09, 06:07 PM #3 (permalink)
You don't need to wait for them to release one:

Picasa Web Albums - nubie - PCIe x1
Click the image to open in full size.

Click the image to open in full size.

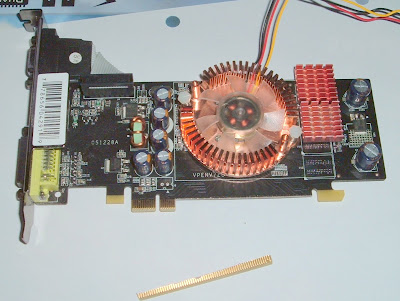

I make my own with a dremel tool or grinder. (note that the +12v for the memory power supply did get cut, I re-attached to the unused fan +12v.)

That card has been working for over a year

I would much prefer a full size card on a 90° riser instead: GA630 PCI-E Riser Card

Safer to cut to a x1 slot as well.

(Edit to put in link and pictures)
Last edited by nubie2; Mar 10th, 09 at 11:49 PM..
Shamino
Shamino's Avatar
Master of past & present


Join Date: Feb 2001
Location: The Abyss
Posts: 13,534
Trade rep: 0 (0%)
Shamino Mar 10th, 09, 07:22 PM #4 (permalink)
wow that is hardcore, i love it
booest
booest's Avatar
bias bast@rd


Join Date: Feb 2004
Location: Tribal Isles
Posts: 94,550
Trade rep: 53 (100%)
booest Mar 10th, 09, 07:29 PM #5 (permalink)
Quote:
Originally Posted by Shamino View Post
wow that is hardcore, i love it
SHAM!!!!!!!!!!!! long time no see dah
| Intel Core 2 Quad (45nm) Q3350 - cooled by Scythe Zipang | Asus P5Q3-Deluxe ExpressGate on-board | Gigabyte ATi HD4670 |
| 4x 2Gb DDR3 1600MHz Qimonda Aeneon | Vista OS on 2 x WD 640gb AAKS [RAID0] + JBODs | LSi Logic MegaRAID 8344ELP |
| LG 20X DVD writer - LightScribe (PATA) | Seasonic M12D- 750Watts | Soldam WindY Alcadia X1 - Black-1st gen | Dell 2707WFP |
| On-board Sound via via Custom dreamslacker or yantronic cables |AE AegoM changed satellites to Travagans 2" - Black |

vR-Zone 10th Anniversary Bicycle Promo

Win an iPad when you use PINCH - Newest iPhone Messaging App ...with a pinch

vR is 10 - Celebration Options discussion
Shamino
Shamino's Avatar
Master of past & present


Join Date: Feb 2001
Location: The Abyss
Posts: 13,534
Trade rep: 0 (0%)
Shamino Mar 10th, 09, 07:35 PM #6 (permalink)
Quote:
Originally Posted by booest View Post
SHAM!!!!!!!!!!!! long time no see dah
heheheh hows life....
booest
booest's Avatar
bias bast@rd


Join Date: Feb 2004
Location: Tribal Isles
Posts: 94,550
Trade rep: 53 (100%)
booest Mar 10th, 09, 07:39 PM #7 (permalink)
Quote:
Originally Posted by Shamino View Post
heheheh hows life....
slow dah

without you OC-ing hahahahahahaha
| Intel Core 2 Quad (45nm) Q3350 - cooled by Scythe Zipang | Asus P5Q3-Deluxe ExpressGate on-board | Gigabyte ATi HD4670 |
| 4x 2Gb DDR3 1600MHz Qimonda Aeneon | Vista OS on 2 x WD 640gb AAKS [RAID0] + JBODs | LSi Logic MegaRAID 8344ELP |
| LG 20X DVD writer - LightScribe (PATA) | Seasonic M12D- 750Watts | Soldam WindY Alcadia X1 - Black-1st gen | Dell 2707WFP |
| On-board Sound via via Custom dreamslacker or yantronic cables |AE AegoM changed satellites to Travagans 2" - Black |

vR-Zone 10th Anniversary Bicycle Promo

Win an iPad when you use PINCH - Newest iPhone Messaging App ...with a pinch

vR is 10 - Celebration Options discussion
nubie2 Registered User


Join Date: Feb 2008
Posts: 136
Trade rep: 0 (0%)
nubie2 Mar 10th, 09, 11:44 PM #8 (permalink)
Quote:
Originally Posted by Shamino View Post
wow that is hardcore, i love it
Wow, right from Shamino !!

I was pretty bummed out when it wouldn't work, so I measured the Vmem and it was 0v, so I hooked an energizer Lithium 1.7v battery to the Mem capacitor and it would work!

Then I figured that the Vmem power needed some voltage, so I tried 3.3v and then 5 v, and then connected 12v from a molex, and it worked!!

Picasa Web Albums - nubie - PCIe x1
Click the image to open in full size.

Something missing?

Picasa Web Albums - nubie - PCIe x1
Click the image to open in full size.

Oops! It still works though.


I also used your guides to learn how to overclock it

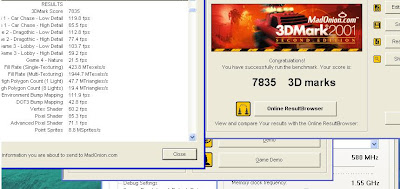

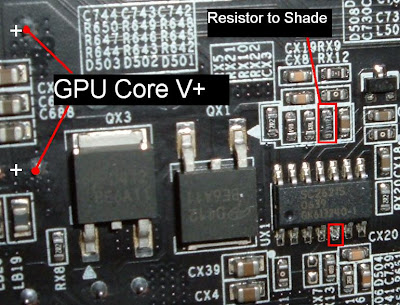

3dmark01 went from 5376 to 7835 with some resistor shading:

Picasa Web Albums - nubie - 6200 Overclock
Click the image to open in full size.

Picasa Web Albums - nubie - 6200 Overclock
Click the image to open in full size.

Although I really did it for the TV-Out and the extra monitor ports, not gaming, obviously.
Shamino
Shamino's Avatar
Master of past & present


Join Date: Feb 2001
Location: The Abyss
Posts: 13,534
Trade rep: 0 (0%)
Shamino Mar 10th, 09, 11:57 PM #9 (permalink)
Thats wonderful nubie2, aint seen a guy bring a dremel to the pcie slot yet! Fine solderin there too, love it!

@ booest, same here slow and dull
Adjudicator Registered User


Join Date: Jan 2009
Posts: 86
Trade rep: 6 (100%)
Thanked 1 Times in 1 Post
Adjudicator Mar 23rd, 09, 03:07 PM #10 (permalink)
a 9500 GT using PCIe 1x is a nice option for those who need to drive more monitors without resorting to PCI Video Cards.

Makes a nice PhysX Module as well.
CPU: Core 2 Quad Extreme QX9650 @ 3.20 GHz (SLAN3)
Mainboard: DFI LANParty LT-X48-T2R
Memory: 4 modules * 2 GB OCZ Reaper HPC DDR2-800 MHz, 4-4-4-12.
Primary Video Card: Palit GTX 260 (216 SP) 896 MB Video RAM
Secondary Video Card: Gigabyte 9600GT 512 MB Video RAM
SSD: Intel X25-M G2 160 GB
HDD 1: Western Digital Caviar Black 931 GB (WD1002FAEX)
HDD 2: Samsung Spinpoint F3 931 GB (HD103SJ)
Optical: Samsung DVD +- RW 22x (SH-S223F)
Sound Card: Auzentech X-Fi Prelude
Power Supply: Thermaltake Toughpower 750 W Semi-Modular (W0116)
Display (Primary): DELL UltraSharp 1905FP 19 inch LCD Monitor. 1280 * 1024
Display (Secondary): Dell E178WFP 17 inch LCD Monitor
1280 * 1024
Input Devices: Logitech G15 Gaming Keyboard (1st revision), Logitech G9 Gaming Mouse)
↑↓ Linkbacks

Thread Tools Display Modes
Linear Mode Linear Mode
