Tyan K8WE Voltage Mod Guide!!
Switch to Linear ModeSwitch to Hybrid ModeSwitch to Threaded Mode
Printer Friendly View | Email this page | Register Now to enjoy user benefits! | Share on Share on Facebook
Page 1 of 2  12
MickeyMouse
MickeyMouse's Avatar
MMOUSE COOLING!
Join Date: Jul 2002
Location: Orlando, FL
Posts: 1,239
Trade rep: 0
Tyan K8WE Voltage Mod Guide!! MickeyMouse May 9th, 05, 10:06 AM #1 (permalink)
VDIMM ONLY ATM WORKING ON VCORE

Board Use 2x ISL6227CA High voltage synchronous rectified buck MOSFET drivers.

You will need 2 1k ohm Variable Resistors

Pin 10 of each 6227CA to a 1k VR and Ground

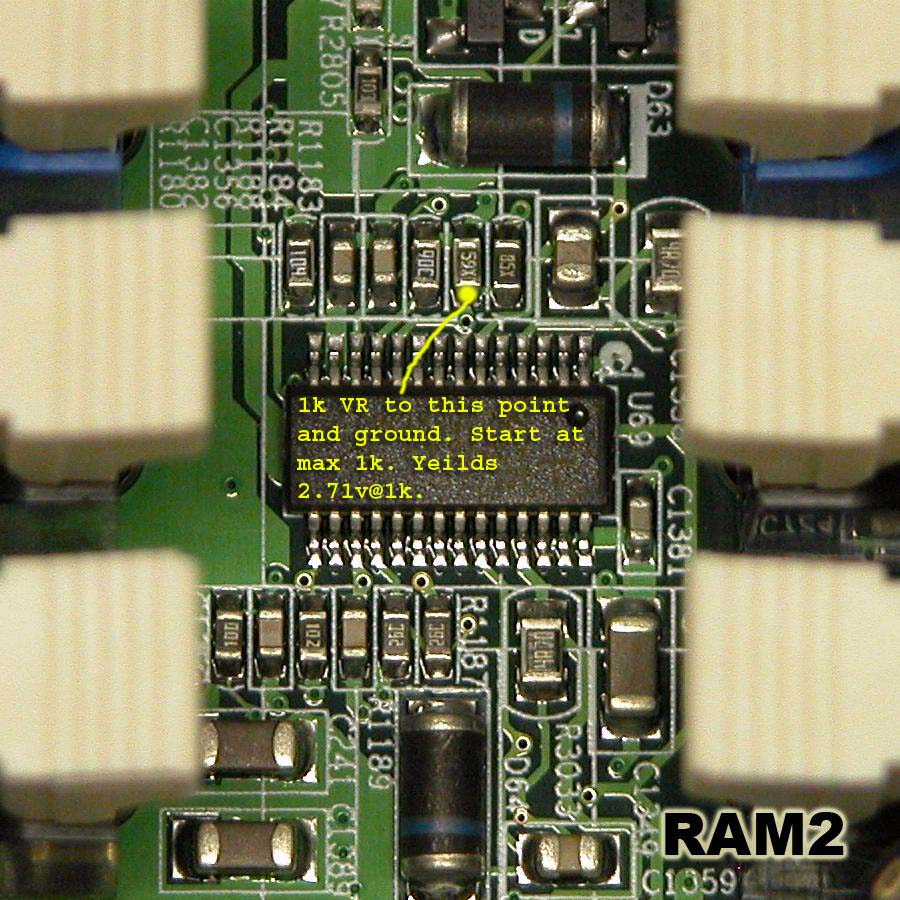

Read Points are the Back Of the mosfets I have marked in the pic's and remember each mod runs the ram on that CPU independantly. So if you set one at 2.8v you will have to set the other CPU at 2.8v also
