[sabe]

Hi guys, just a simple log of what I'm doing to my rig. Here are the parts:

DFI P45-T2RS Plus
Intel Core 2 Quad Q9550
4 x 2GB Team Xtreem Dark PC2-6400
2 x GeCube 4770
1 x WD Velociraptor 300GB
2 x Seagate 7200.12 500GB
Corsair HX620
Lian Li PC A05B

Most of the parts were acquired over the last few months but I needed to lap my TRUE120 so I figured I might as well take some pictures as well. Its still a work in progress, waiting for some parts to arrive so I can finish up, but here it is in its half completed state

I didn't have a tripod with me today so everything is hand held - excuse the blur images

[sabe]

DFI P45-T2RS Plus - #1





DFI P45-T2RS Plus - #2





4 x 2GB Team Xtreem Dark PC2-6400





Dominator Air Flow Cooler - 1





Dominator Air Flow Cooler - 2

[sabe]

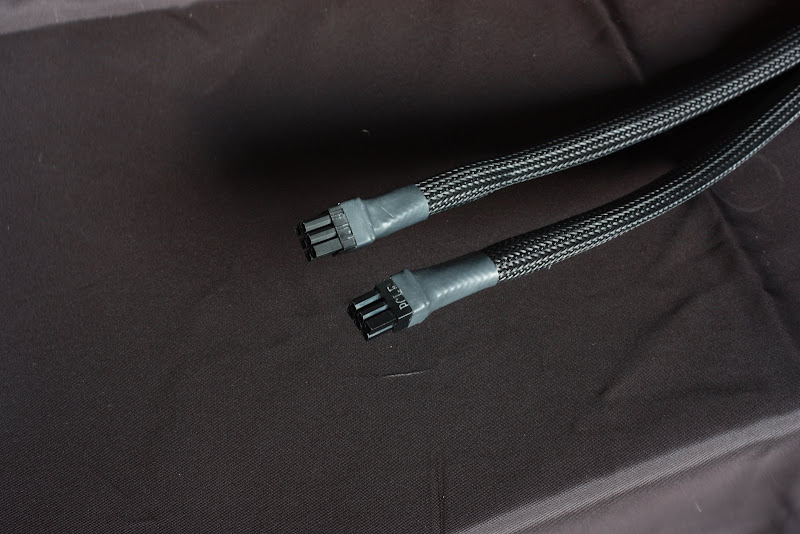

2x 4770 - Sleeved





2x Seagate 7200.12 500GB





My oxidized TRUE120 - #1





My oxidized TRUE120 - #2

[sabe]

Getting ready to lap the TRUE120.





Thanks to the magic of the internet - DONE!





Bleach contains Sodium Hypochlorite which is a base (alkaline) that will react with Aluminum Oxide to form a salt soluble in water.





The "washer mod" to improve mounting pressure

[sabe]

Scythe S-Flex G. One of the few to be used, this one for rear intake.





Rear cable management and fingerprints!





Small hole cut for cable management with a dremel. Its not visible - so I didn't bother to clean up





Powering it up, illuminated by hidden LEDs at the bottom.





For the noisy S-Flex Gs - Scythe Kazemaster ACE

[sabe]

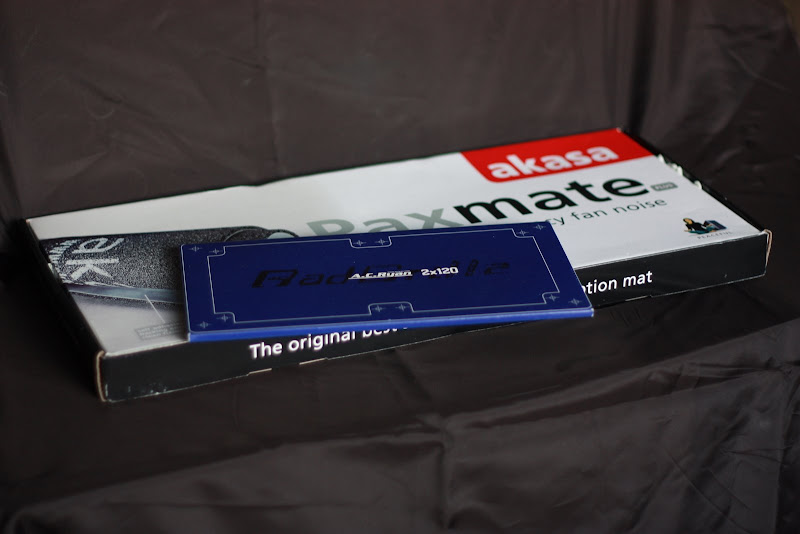

Soundmat and Radgrillz finally here!


Decided to spend a few minutes sleeving my top panel fans. Xigmatek 120mm white LED fans

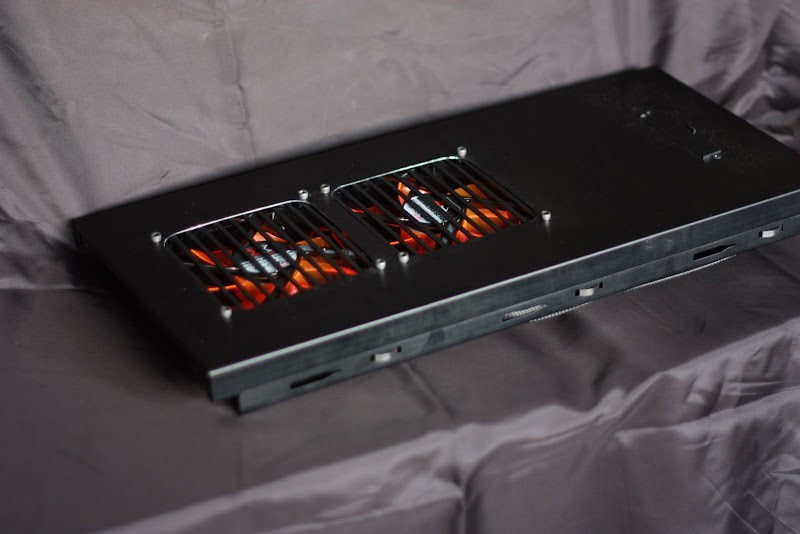

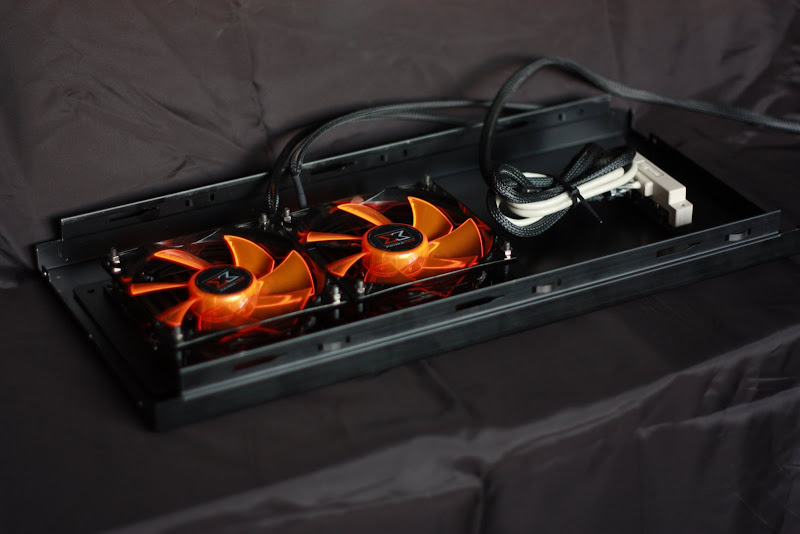

Fans fitted on top.


Radgrillz


Addition to the family.


Decided to do away with single wire sleeving, makes the rig look too cluttered when the look I'm going for is a clean look.


Laying the soundmat... Space at the front is for the PSU so ventilation can't be blocked... Not taped down yet, looks like I got all the dimensions right though! Case feet pokes through the bottom of the case.... Have to do something about that later so my soundmat doesn't bulges at weird places. Replaced the PCI slot covers with black thumbscrews as well, bit hard to see in the picture though

[sabe]

Some more work in progress shots

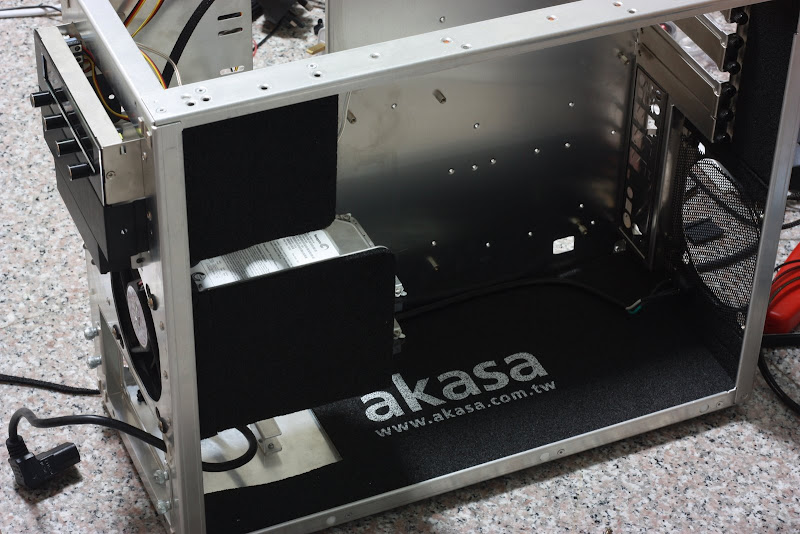

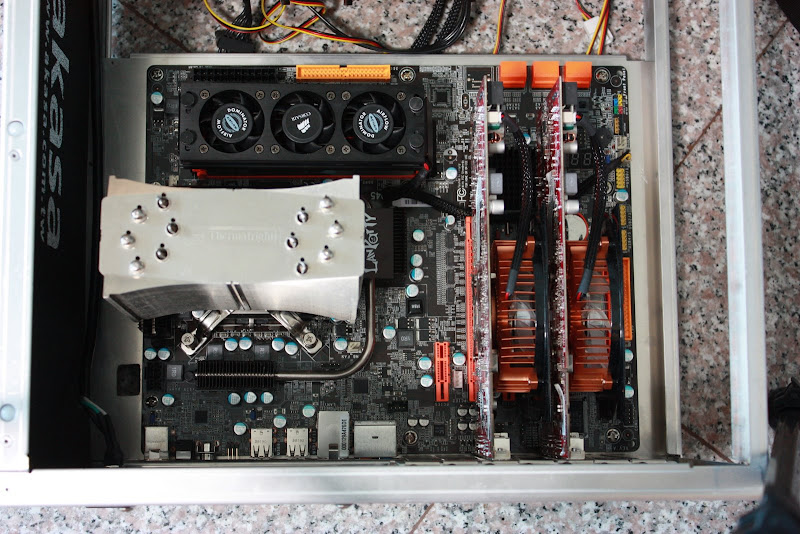

Mounting the components again after laying soundmat

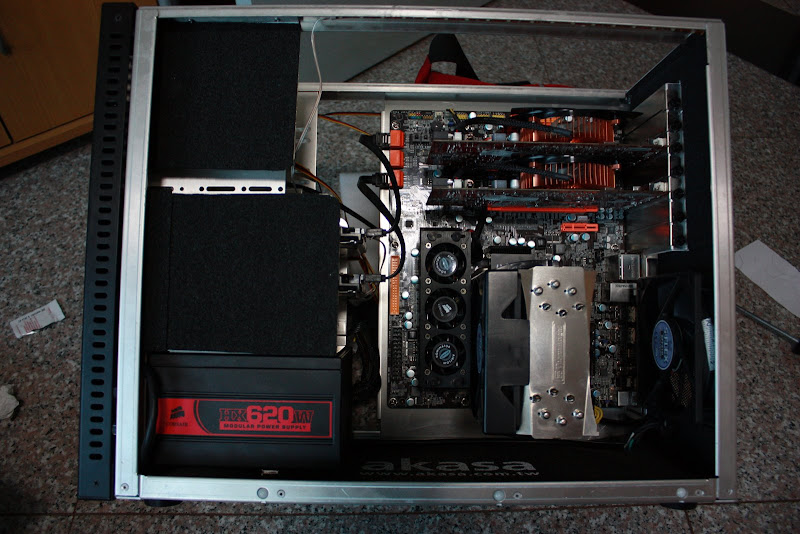

More stuff mounted... The hard drives are eventually replaced but more on that at the end of this

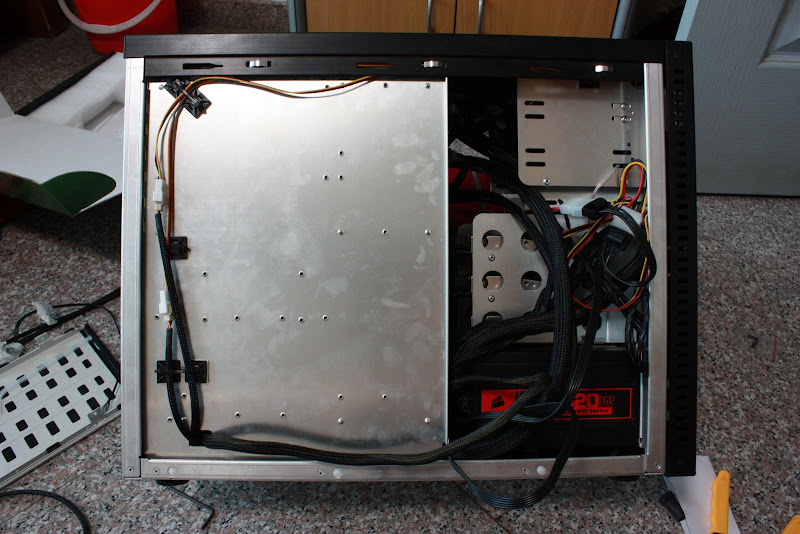

You know how some people have their builds perfect even in the hidden areas where everything is REALLY organized? That someone is not me.


But but, you didn't unisleeve your PSU Someone wants to do it for me?

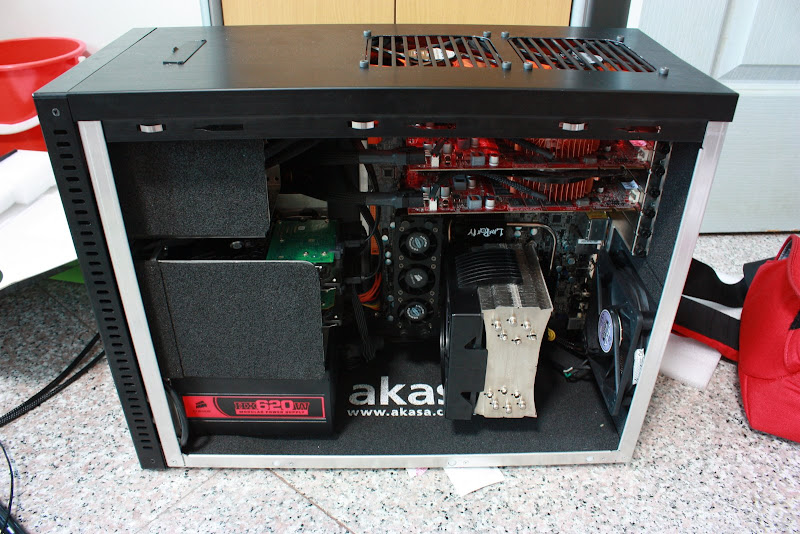

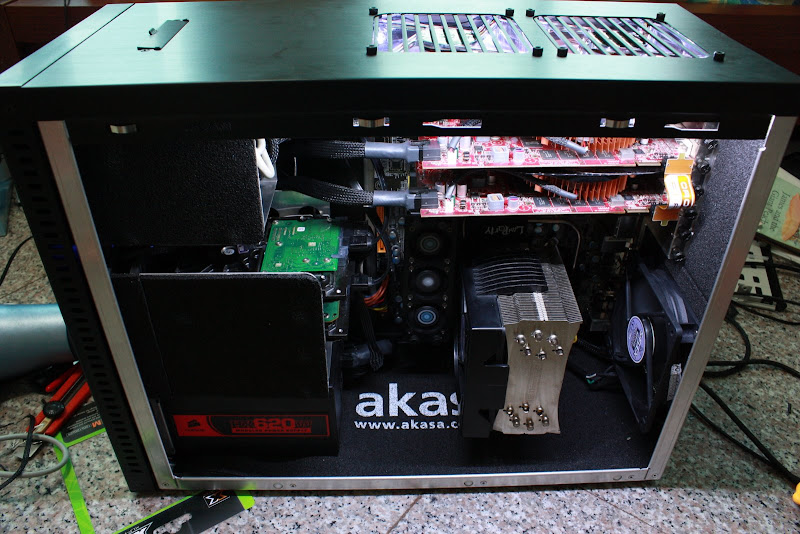

Same shot but powered on, illumination provided by top fans and a LED strip at the top... Forgot to take a picture of that. Anyway 2 out of 3 of the Xigmatek fans... So back to the YL white LEDs for now :O

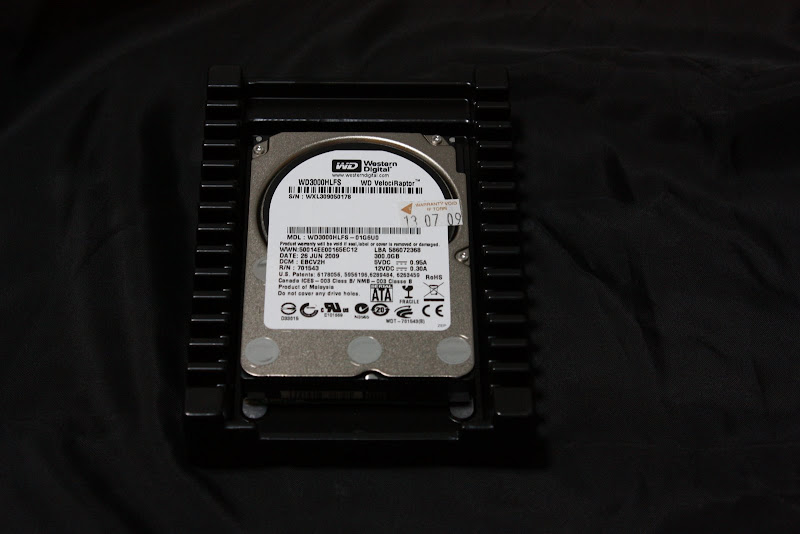

And finally a newly arrived addition

[sabe]

Reserved 7

[moonSymph]

bro some of ur pic is broken line(mainly the ram pic).. =)

[sabe]

Originally Posted by moonSymph

bro some of ur pic is broken line(mainly the ram pic).. =)

Is it still broken? Looks alright from here... hmmm

[moonSymph]

yea its up liao =)

[LiquidX]

Bro 1 of ur link broken, here u go,




nice,clean and simply looking rig, but powerful rig. overclocking?

[terence52]

camping here

[F@|c0n]

bro, the small hole, better to tape it or use a c lining.. the sharp edges will cut the sleeving.. just a precaution..

[Nashaz]

Looks good bro!... Got a clear pic of the cleaned up true? Would be great if the bleach worked... But the top coat of the true is actually nickle. Under it is the aluminum. So yeah, thats y im wondering...
